FFH12702-S40S1004K6L
Download page
Female Header 1.27mm 180°Vertical Single Row 40Circuits(DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
1.27mm
Row Option
Single row
Number of Positions
40Circuits
Height(mm)
H4.3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
FAILED

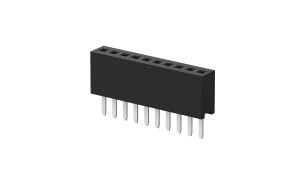

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.494126
10
$0.466025
50
$0.409822
100
$0.381721
500
$0.325519
1000
$0.253957
2500
$0.250466
5000
$0.246976
10000
$0.243485
25000
$0.239994
stock: 0 Estimated delivery date 2025-04-22
MPQ: 20
MOQ: 20
