FFH12705-D06S1004K6K
Download page
Female Header 1.27mm 180°Vertical Double Row 6Circuits(SMT)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
6Circuits
Peg
Without peg
Height(mm)
H2.25
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

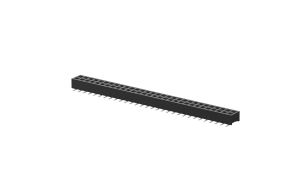

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.138554
10
$0.129666
50
$0.111890
100
$0.103002
500
$0.085225
1000
$0.056368
2500
$0.055598
5000
$0.054829
10000
$0.054059
25000
$0.053290
stock: 0 Estimated delivery date 2025-04-25
MPQ: 1
MOQ: 1000
