FFH12705-D40S1054K6MA Female Header 1.27mm 180°Vertical Double Row 40Circuits(SMT))(5μ'')

FFH12705-D40S1054K6MA

Download page

Female Header 1.27mm 180°Vertical Double Row 40Circuits(SMT))(5μ'')

Product Number：

FFH12705-D40S1054K6MA

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Type

Type A

Pitch

1.27mm

Row Option

Dual row

Number of Positions

40Circuits

Peg

With peg

Height(mm)

H2.25

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

Mounting Style

SMT

Material

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.125μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

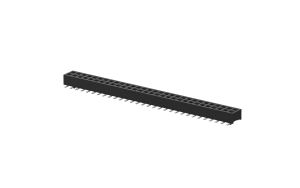

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
