Where you are： TXGA → Products → Pin Header/Female Header → FFH12705 → FFH12705-D40S1104K6MA

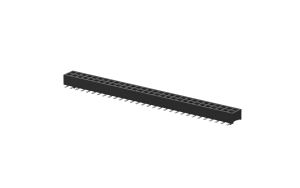

FFH12705-D40S1104K6MA
Download page
Female Header 1.27mm 180°Vertical Double Row 40Circuits(SMT))(10μ'')
Product System：
Pin Header/Female Header
Product Category：
Female Header
Series：
Female Header 1.27mm Double row 180°Vertical(SMT) (H2.25mm) (With/Without peg)
Status：
Inactive
authentication：
REACH RoHS ELV
Product Drawings
FFH12705 Series.pdf
Product Specification
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Type
Type A
Pitch
1.27mm
Row Option
Dual row
Number of Positions
40Circuits
Peg
With peg
Height(mm)
H2.25
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.25μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$3.917199
10
$3.705055
50
$3.280766
100
$3.068622
500
$2.644334
1000
$2.121443
2500
$2.091563
5000
$2.061684
10000
$2.031804
25000
$2.001925
stock： 0 Estimated delivery date 2025-04-22
MPQ： 1000
MOQ： 1000
