FFH20001-D60S1034K6K Female Header 2mm 180°Vertical Double row 60Circuits(DIP)(3μ'')

FFH20001-D60S1034K6K

Download page

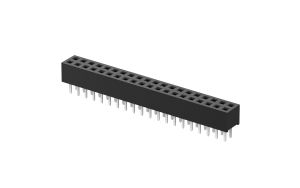

Female Header 2mm 180°Vertical Double row 60Circuits(DIP)(3μ'')

Product Number：

FFH20001-D60S1034K6K

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Pitch

2mm

Row Option

Dual row

Number of Positions

60Circuits

Height(mm)

H4.3

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
