FFH20002-S08B1004K6K
Download page
Female Header 2mm, Single row, 8Circuits, 90° Angle(DIP), Gold flash, PA6T
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Single row
Number of Positions
8Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

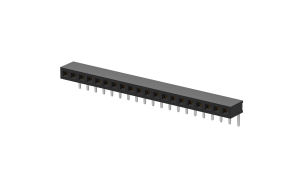

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.149772
10
$0.140886
50
$0.123116
100
$0.114231
500
$0.096461
1000
$0.071670
2500
$0.070689
5000
$0.069707
10000
$0.068725
25000
$0.067743
stock: 0 Estimated delivery date 2025-04-28
MPQ: 1
MOQ: 1000
