FFH20004-D18S1004K6M
Download page
Female Header 2mm, Double row, 18Circuits, 180° Vertical(SMT), Gold flash, PA6T
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
18Circuits
Peg
With peg
Height(mm)
H4.3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

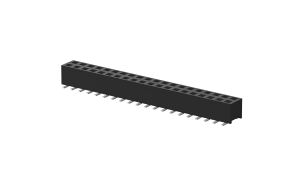

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.295115
10
$0.277608
50
$0.242592
100
$0.225085
500
$0.190069
1000
$0.141222
2500
$0.139287
5000
$0.137353
10000
$0.135418
25000
$0.133484
stock 2 In stock
MPQ: 1000
MOQ: 1000
