FFH20006-T90S1004K6K
Download page

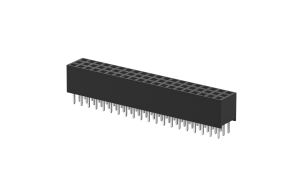

Female Header 2mm 180°Vertical Triple row 90Circuits(DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
3 rows
Number of Positions
90Circuits
Height(mm)
H6.35
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.156970
10
$1.093438
50
$0.966375
100
$0.902843
500
$0.775779
1000
$0.624513
2500
$0.615869
5000
$0.607226
10000
$0.598582
25000
$0.589938
stock 4 In stock
MPQ: 20
MOQ: 20
