FFH20013-D52B1014K6K
Download page
Female Header 2mm, Double row, 52Circuits, 90° Angle(DIP), 1μ", PA6T
Product Number:
FFH20013-D52B1014K6K
Status:
Active
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
52Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

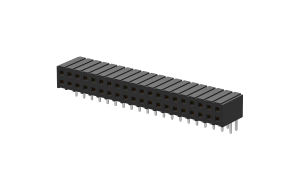

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥7.693391
10+
¥7.266453
50+
¥6.412574
100+
¥5.985634
500+
¥5.131755
stock 6 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
