FFH20014-D16S1014K6M
Download page
Female Header 2mm, Double row, 16Circuits, 180° Vertical(SMT), 1μ", PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
16Circuits
Peg
Without peg
Height(mm)
H7.9
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

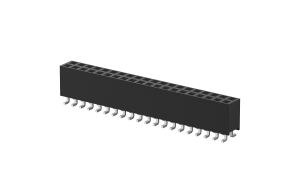

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.429512
10
$0.405085
50
$0.356232
100
$0.331806
500
$0.282953
1000
$0.220749
2500
$0.217715
5000
$0.214680
10000
$0.211646
25000
$0.208611
stock 15 In stock
MPQ: 20
MOQ: 20
