FFH20014-D20S1004K6M
Download page

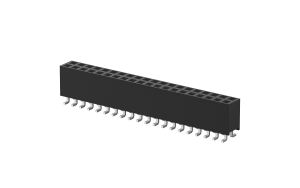

Female Header 2mm, Double row, 20Circuits, 180° Vertical(SMT), Gold flash, PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Peg
Without peg
Height(mm)
H7.9
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.444275
10
$0.419009
50
$0.368477
100
$0.343211
500
$0.292679
1000
$0.228336
2500
$0.225198
5000
$0.222059
10000
$0.218921
25000
$0.215782
stock: 0 Estimated delivery date 2025-04-29
MPQ: 20
MOQ: 20
