FFH20018-D50S1014K6K
Download page

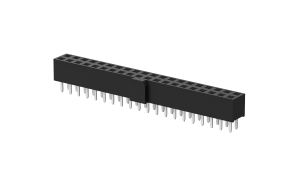

Female Header 2mm 180°Vertical Double row 50Circuits(DIP)(1μ'')
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
50Circuits
Height(mm)
H4.3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.915296
10
$0.864502
50
$0.762914
100
$0.712121
500
$0.610533
1000
$0.487754
2500
$0.481026
5000
$0.474299
10000
$0.467571
25000
$0.460843
stock: 0 Estimated delivery date 2025-04-22
MPQ: 20
MOQ: 20
