FFH20034-D36S1034K6M1A
Download page

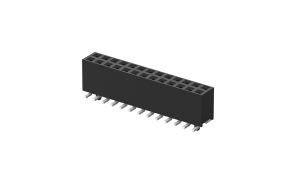

Female Header 2mm 180°Vertical Double row 36Circuits(SMT)(3μ'')
Product Number:
FFH20034-D36S1034K6M1A
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Type
Type A
Pitch
2mm
Row Option
Dual row
Number of Positions
36Circuits
Peg
With peg
Height(mm)
H7.2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel(With mylar)
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
