FFH25401-D14S1001K6K
Download page
Female Header 2.54mm 180°Vertical Double row 14Circuits(DIP)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
14Circuits
Height(mm)
H5.7
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

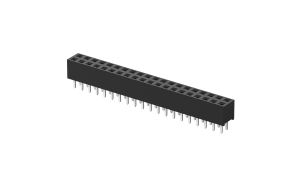

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.180205
10
$0.169514
50
$0.148133
100
$0.137442
500
$0.116061
1000
$0.086234
2500
$0.085053
5000
$0.083871
10000
$0.082690
25000
$0.081509
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1
MOQ: 1000
