FFH25401-D40S1014K6K
Download page

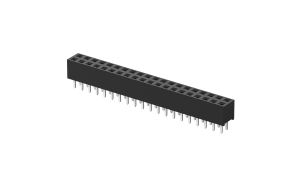

Female Header 2.54mm, Double row, 40Circuits, 180° Vertical(DIP), 1μ", PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
40Circuits
Height(mm)
H5.7
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.663465
10
$0.626647
50
$0.553010
100
$0.516191
500
$0.442554
1000
$0.353556
2500
$0.348679
5000
$0.343803
10000
$0.338926
25000
$0.334049
stock: 0 Estimated delivery date 2025-05-08
MPQ: 20
MOQ: 20
