FFH25403-S03S1001K6K
Download page
Female Header 2.54mm, Single row, 3Circuits, 180° Vertical(DIP), Gold flash, PBT
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Single row
Number of Positions
3Circuits
Height(mm)
H7.1
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

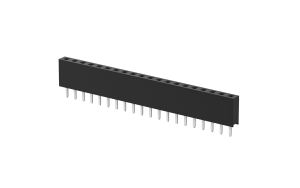

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.108798
10
$0.101819
50
$0.087860
100
$0.080881
500
$0.066923
1000
$0.044263
2500
$0.043658
5000
$0.043054
10000
$0.042450
25000
$0.041846
stock 15 In stock
MPQ: 1
MOQ: 1000
