FFH25405-D16S1034K6K
Download page
Female Header 2.54mm 180°Vertical Double row 16Circuits(DIP)(3μ'')
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
16Circuits
Height(mm)
H8.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

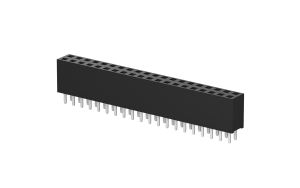

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.690310
10
$0.652002
50
$0.575385
100
$0.537077
500
$0.460460
1000
$0.367861
2500
$0.362787
5000
$0.357713
10000
$0.352639
25000
$0.347565
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1
MOQ: 1000
