FFH25405-D24S1004K6K
Download page

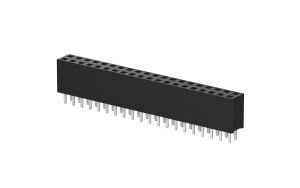

Female Header 2.54mm 180°Vertical Double row 24Circuits(DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
24Circuits
Height(mm)
H8.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.281772
10
$0.265056
50
$0.231624
100
$0.214908
500
$0.181476
1000
$0.134837
2500
$0.132990
5000
$0.131143
10000
$0.129296
25000
$0.127449
stock: 0 Estimated delivery date 2025-01-24
MPQ: 20
MOQ: 20
