FFH25419-D12S1014K6M1
Download page

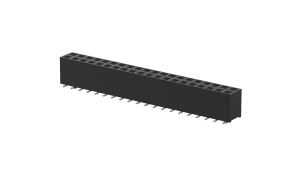

Female Header 2.54mm 180°Vertical Double row 12Circuits(SMT)(1μ'')
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
12Circuits
Peg
With peg
Height(mm)
H7.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel(With mylar)
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.298327
10
$0.258550
50
$0.214795
100
$0.195901
500
$0.172035
1000
$0.134247
5000
$0.132258
10000
$0.128487
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1000
MOQ: 1000
