FFH25419-D14S1004K6M
Download page

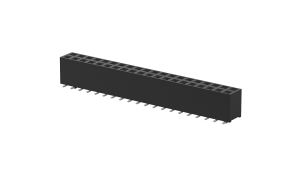

Female Header 2.54mm 180°Vertical Double row 14Circuits(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
14Circuits
Peg
With peg
Height(mm)
H7.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.287293
10
$0.270954
50
$0.238277
100
$0.221939
500
$0.189262
1000
$0.147655
2500
$0.145625
5000
$0.143596
10000
$0.141566
25000
$0.139536
stock 20 In stock
MPQ: 20
MOQ: 20
