FFH25428-S06S1014K6M1-A
Download page
Female Header 2.54mm, Single row, 6Circuits, 180° Vertical(SMT), 1μ", PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Type
Type A
Pitch
2.54mm
Row Option
Single row
Number of Positions
6Circuits
Height(mm)
H7.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel(With mylar)
FAILED

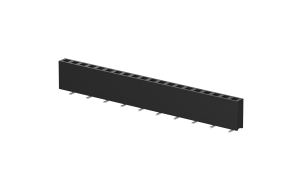

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.216204
10
$0.151343
50
$0.132425
100
$0.123236
500
$0.103238
1000
$0.074320
5000
$0.073239
10000
$0.072158
stock: 0 Estimated delivery date 2025-04-29
MPQ: 20
MOQ: 20
