FFH25431-D40S1001K6K Female Header 2.54mm 180°Vertical Double Row 40Circuits(DIP)

FFH25431-D40S1001K6K

Download page

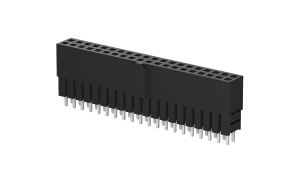

Female Header 2.54mm 180°Vertical Double Row 40Circuits(DIP)

Product Number：

FFH25431-D40S1001K6K

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Pitch

2.54mm

Row Option

Dual row

Number of Positions

40Circuits

Height(mm)

H13.5

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBH25401-D40S1001K6K

Box Header 2.54mm 180°Vertical 40Circuits(DIP)

FBH25402-D40B1001K6K

Box Header 2.54mm 90°Angle 40Circuits(DIP)
