FFH25450-S04S1004K6K
Download page
Female Header 2.54mm, Single row, 4Circuits, 180° Vertical(DIP), PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2.54mm
Row Option
Single row
Number of Positions
4Circuits
Height(mm)
H13.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

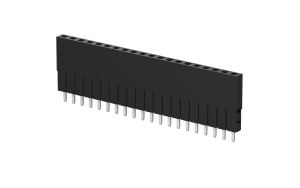

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.287318
10
$0.270978
50
$0.238298
100
$0.221958
500
$0.189278
1000
$0.147668
2500
$0.145638
5000
$0.143608
10000
$0.141578
25000
$0.139548
stock: 0 Estimated delivery date 2025-04-29
MPQ: 20
MOQ: 20
