FHD14-FDB300K6K
Download page

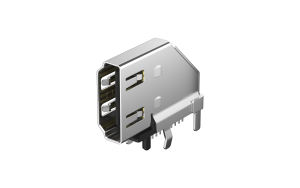

HDMI 2.0 A-type 90°Angle Female (DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
HDMI
Style
Socket
Gender
Female
Type
Type A
Version
2.0
Number of Positions
19Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
40V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.797874
10
$0.746104
50
$0.651699
100
$0.609064
500
$0.520750
1000
$0.415686
5000
$0.409596
10000
$0.403505
stock 746 In stock
MPQ: 40
MOQ: 800
