FHG12502-S07M2W1B
Download page
Wire to board housing 1.25mm 7Circuits
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
1.25mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1A
Voltage(Max)
125V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

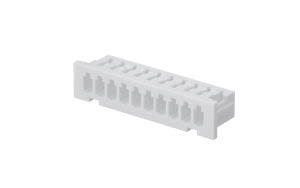

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.031511
10
$0.029378
50
$0.025112
100
$0.022979
500
$0.018712
1000
$0.011159
2500
$0.011007
5000
$0.010856
10000
$0.010704
25000
$0.010552
stock 373 In stock
MPQ: 1000
MOQ: 1000
