FHG25401-S13M2W1B
Download page
Wire to board housing 2.54mm 13Circuits
Product Number:
FHG25401-S13M2W1B
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
2.54mm
Row Option
Single row
Number of Positions
13Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
2.5A
Voltage(Max)
250V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

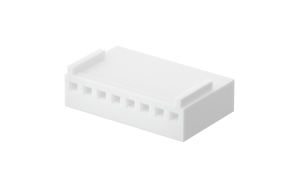

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.076698
10+
$0.071506
50+
$0.061122
100+
$0.055930
500+
$0.045546
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 1000
