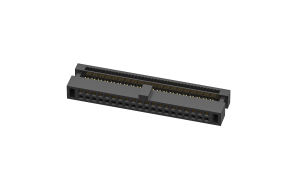

FID12701-281K6K IDC 1.27mm 28Circuits(2 Assemblies)

FID12701-281K6K

Download page

IDC 1.27mm 28Circuits(2 Assemblies)

Product Number：

FID12701-281K6K

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

Box Header/IDC

Product Category

IDC Connector

Style

Plug

Pitch

1.27mm

Row Option

Dual row

Number of Positions

28Circuits

Assemblies

2 Assemblies

Orientation

Right angle(90°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

IDC

Material

Material-Contact

Phosphor bronze

Plating

Gold plated

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
