FID12701-641K6K
Download page

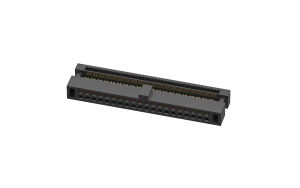

IDC 1.27mm 64Circuits(2 Assemblies)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
1.27mm
Row Option
Dual row
Number of Positions
64Circuits
Assemblies
2 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.878110
10
$0.840816
50
$0.711981
100
$0.681468
500
$0.583146
1000
$0.464483
5000
$0.457702
10000
$0.450921
stock: 0 Estimated delivery date 2025-01-24
MPQ: 1
MOQ: 1000
