Where you are： TXGA → Products → Micro Match → FID12707 → FID12707-164R1K

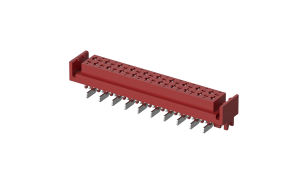

FID12707-164R1K
Download page
Micro match 1.27mm 180°Vertical 16Circuits(SMT)
Product Number：
FID12707-164R1K
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Micro Match
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
Dual row
Number of Positions
16Circuits
Assemblies
Orientation
Vertical(180°)
Colour
Red
 Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FID12707-164R1K
Micro match 1.27mm 180°Vertical 16Circuits(SMT)
MPQ： 1
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
