FID12707-204R1M Micro match 1.27mm 180°Vertical 20Circuits(SMT)

FID12707-204R1M

Download page

Micro match 1.27mm 180°Vertical 20Circuits(SMT)

Product Number：

FID12707-204R1M

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

Micro Match

Style

Socket

Gender

Female

Pitch

1.27mm

Row Option

Dual row

Number of Positions

20Circuits

Assemblies

Orientation

Vertical(180°)

Colour

Red

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

SMT

Material

Material-Contact

Brass

Plating

Matte tin plated

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

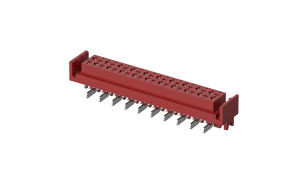

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
