FID20001-183K6K
Download page
IDC 2mm 18Circuits(2 Assemblies)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
18Circuits
Assemblies
2 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Brass
Plating
Gold on contact, nickel on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

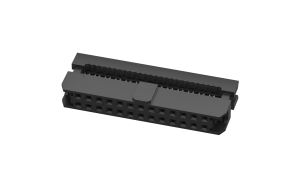

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.198860
10
$0.139646
50
$0.119908
100
$0.111520
500
$0.093262
1000
$0.068096
5000
$0.067109
10000
$0.066122
stock: 0 Estimated delivery date 2025-04-21
MPQ: 1
MOQ: 1000
