FID20001-603K6K
Download page
IDC 2mm 60Circuits(2 Assemblies)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
60Circuits
Assemblies
2 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Brass
Plating
Gold on contact, nickel on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

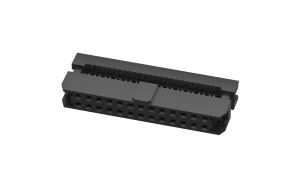

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.524513
10
$0.455270
50
$0.379103
100
$0.351406
500
$0.304667
1000
$0.238021
5000
$0.234559
10000
$0.231097
stock: 0 Estimated delivery date 2025-04-21
MPQ: 1
MOQ: 1000
