FID20008-141BKK

Download page

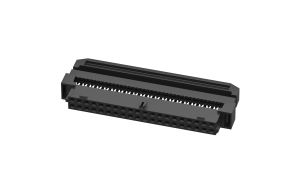

IDC 2mm (3 Assemblies), 14Circuits

Product Number：

FID20008-141BKK

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Box Header/IDC

Product Category

IDC Connector

Style

Plug

Pitch

2mm

Row Option

Dual row

Number of Positions

14Circuits

Assemblies

3 Assemblies

Orientation

Right angle(90°)

Colour

Black

Electrical

Current(Max)

1A

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

IDC

Material

Material-Contact

Brass

Plating

Gold on contact, nickel on tail

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBH20015-D14S1004K6K

Box Header 2mm 180°Vertical 14Circuits(SMT)

FBH20015-D14S1004K6KA

Box Header 2mm, 14Circuits, 180° Vertical(SMT), PA9T

FBH20015-D14S1004K6M

Box Header, 2mm, 14Circuits, Vertical(180°), SMT, PA9T

FBH20015-D14S1004K6MA

Box Header, 2mm, 14Circuits, Vertical(180°), SMT, PA9T, With peg

FBH20015-D14S1014K6KA

Box Header, 2mm, 14Circuits, Vertical(180°), SMT, PA9T, With peg

FBH20015-D14S1014K6MA

Box Header, 2mm, 14Circuits, Vertical(180°), SMT, PA9T

FBH20021-D14S1004K6K

Box Header 2mm, 14Circuits, 180° Vertical(DIP), PA9T

FBH20023-D14B1005BKK

Box Header, 2mm, 14Circuits, Right angle(90°), Through hole, PA9T

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$0.397271

10+

$0.344826

50+

$0.287137

100+

$0.266159

500+

$0.230758

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 144

MOQ： 1008

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}
