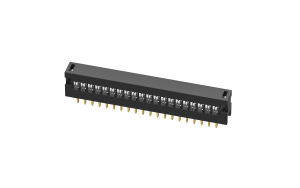

FID25403-403K6K
Download page
IDC 2.54mm 40Circuits
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
40Circuits
Assemblies
2 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Brass
Plating
Gold on contact, bright tin on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.243641
10
$0.229187
50
$0.200279
100
$0.185825
500
$0.156917
1000
$0.116590
2500
$0.114993
5000
$0.113396
10000
$0.111799
25000
$0.110201
stock: 0 Estimated delivery date 2025-04-28
MPQ: 1
MOQ: 1000
