FLV05002-40SBA1033K6M
Download page
LVDS 0.5mm 90°Angle 40Circuits(SMT)(3μ'')
Product Number:
FLV05002-40SBA1033K6M
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
LVDS Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Number of Positions
40Circuits
Contact Mating Location
Top contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

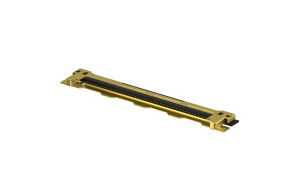

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$1.132755
10+
$1.070553
50+
$0.946149
100+
$0.883947
500+
$0.759543
stock 444 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 10000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
