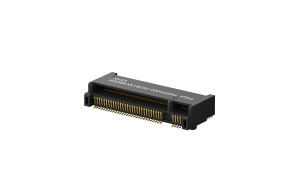

FM205003-F67B1003BKMM
Download page
M.2, 0.5mm, Female, 67Circuits, Right angle(90°), SMT, Black, M Key, H4.2mm
Product Number:
FM205003-F67B1003BKMM
Status:
Active
Category
Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
M.2
Style
Socket
Gender
Female
Type
Type M
Version
Gen 4
Pitch
0.5mm
Number of Positions
67Circuits
Height(mm)
H4.2
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
55 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.587902
10+
$0.549756
50+
$0.480195
100+
$0.448780
500+
$0.383707
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 750
MOQ: 4500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ isCn?'¥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices: {{ isCn?'¥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
