FMT236-M103B
Download page

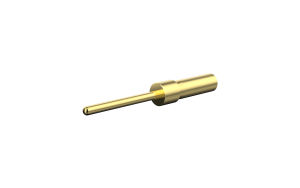

Pin, ∅1x15.5mm, Gold plated, 0.075μm, Crimp, 26-28 AWG
Product Number:
FMT236-M103B
Status:
Active
Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Machined pin D-SUB
Style
Terminal
Gender
Male
Number of Positions
1Circuit
Orientation
Vertical(180°)
Applicable wires (AWG Max.)
26AWG
Electrical
Current(Max)
7.5A
Voltage(Max)
250V
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Riveting
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥2.952258
10+
¥2.381488
50+
¥2.007535
100+
¥1.817279
500+
¥1.561416
stock 143177 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: ¥{{ product.price}}
Total prices: ¥{{ product.subTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FMT236-M103B
Pin, ∅1x15.5mm, Gold plated, 0.075μm, Crimp, 26-28 AWG
MPQ: 1
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
