FMT347-F103B

Download page

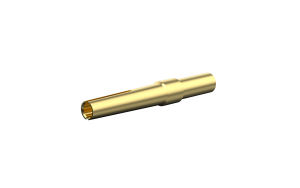

Leaf spring socket, ∅1x13.6mm, Gold plated, 0.075μm, Crimp, 20-24AWG

Product Number：

FMT347-F103B

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Machined pin D-SUB

Style

Terminal

Gender

Female

Number of Positions

1Circuit

Orientation

Vertical(180°)

Applicable wires (AWG Max.)

20AWG

Electrical

Current(Max)

7.5A

Voltage(Max)

250V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Riveting

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.075μm

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FDB0908-F0TS000K6KA

D-SUB Female 9Circuits

FDB0908-F0TS000K6KB

D-SUB Female 9Circuits

FDB1508-F0TS000K6KA

D-SUB Female 15Circuits

FDB2508-F0TS000K6KA

D-SUB Female 25Circuits

FDB3708-F0TS000K6KA

D-SUB Female 37Circuits

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$0.594662

10+

$0.497048

50+

$0.410653

100+

$0.378115

500+

$0.328747

stock 349 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1

MOQ： 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
