FPG00012-001S1000B
Download page

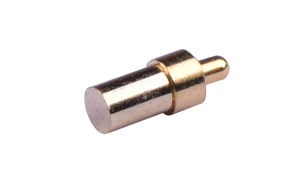

Pogo Pin: ∅1.2X∅2.2X5.6mm
Product Number:
FPG00012-001S1000B
Status:
Active
Category
Product Catalog
Connectors
Product System
Battery Connector
Product Category
Pogo pin
Style
Plug
Gender
Male
Pitch
N/A
Row Option
Single row
Number of Positions
1Circuit
Orientation
Vertical(180°)
Colour
Yellow
Electrical
Current(Max)
0.5A
Voltage(Max)
12V
Contact Resistance
30 mΩ Max
Insulation Resistance
N/A
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
No
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥1.240741
10+
¥1.167135
50+
¥1.019921
100+
¥0.946314
500+
¥0.799101
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: ¥{{ product.price}}
Total prices: ¥{{ product.subTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FPG00012-001S1000B
Pogo Pin: ∅1.2X∅2.2X5.6mm
MPQ: 1
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
