Where you are： TXGA → Products → Battery Connector → FPG40004-S05S1017B

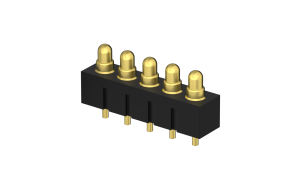

FPG40004-S05S1017B
Download page
Pogo pin, 4mm, 5Circuits, Vertical(180°), Through hole, 0.025μm
Product Number：
FPG40004-S05S1017B
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Battery Connector
Product Category
Pogo pin
Style
Plug
Gender
Male
Pitch
4mm
Row Option
Single row
Number of Positions
5Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
12V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{7.006175 | tradeCurrencySymbol}}
10+
{{6.655866 | tradeCurrencySymbol}}
50+
{{5.820515 | tradeCurrencySymbol}}
100+
{{5.470206 | tradeCurrencySymbol}}
500+
{{4.742642 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 500
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FPG40004-S05S1017B
Pogo pin, 4mm, 5Circuits, Vertical(180°), Through hole, 0.025μm
MPQ： 500
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
