FPH20048-D14S1014121217B
Download page

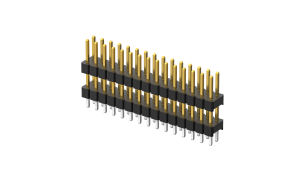

Pin Header 2.00mm, Double row, 14Circuits, 180° Vertical(DIP), 1μ", PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.284574
10
$0.267692
50
$0.233927
100
$0.217045
500
$0.183281
1000
$0.136178
2500
$0.134313
5000
$0.132447
10000
$0.130582
25000
$0.128716
stock: 0 Estimated delivery date 2025-04-30
MPQ: 20
MOQ: 20
