FPH20048-D40S1014150716B
Download page
Pin Header 2.00mm, Double row, 40Circuits, 180° Vertical(DIP), 1μ", PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
40Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

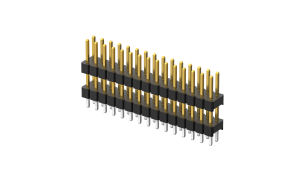

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.719795
10
$0.679851
50
$0.599962
100
$0.560017
500
$0.480128
1000
$0.383574
2500
$0.378283
5000
$0.372992
10000
$0.367701
25000
$0.362411
stock 820 In stock
MPQ: 20
MOQ: 20
