FPH20052-T12S1014110710B
Download page

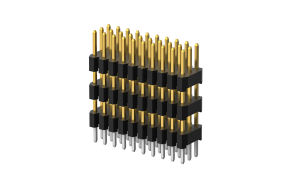

Pin Header 2.00mm, Three row, 12Circuits, 180° Vertical(DIP), 1μ", PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2mm
Row Option
3 rows
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.387716
10
$0.336021
50
$0.285618
100
$0.264939
500
$0.230045
1000
$0.177057
5000
$0.174472
10000
$0.166750
stock: 0 Estimated delivery date 2025-04-30
MPQ: 20
MOQ: 20
