FPH20053-S02B1014110706B Pin Header 2.00mm, Single row, 2Circuits, 90° Angle(DIP), 1μ", PA6T

FPH20053-S02B1014110706B

Download page

Pin Header 2.00mm, Single row, 2Circuits, 90° Angle(DIP), 1μ", PA6T

Product Number：

FPH20053-S02B1014110706B

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Pin Header

Style

Plug

Pitch

2mm

Row Option

Single row

Number of Positions

2Circuits

Orientation

Right angle(90°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

600V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

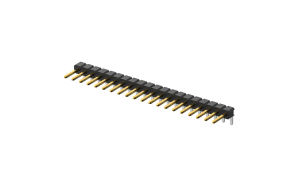

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
