Where you are： TXGA → Products → Pin Header/Female Header → FPH25401-S06S100429B

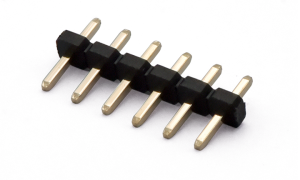

FPH25401-S06S100429B
Download page
Pin Header 2.54mm, Single row, 6Circuits, 180° Vertical(DIP), Gold flash, PA6T
Product System：
Pin Header/Female Header
Product Category：
Pin Header
Status：
Inactive
authentication：
REACH RoHS ELV
Product Drawings
FPH25401 Series.pdf
Product Specifications
FPH25401Productspecification.pdf
Product Specification
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Single row
Number of Positions
6Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.068432
10
$0.063800
50
$0.054535
100
$0.049902
500
$0.040637
1000
$0.024234
2500
$0.023904
5000
$0.023575
10000
$0.023245
25000
$0.022915
stock： 0 Estimated delivery date 2025-04-29
MPQ： 1000
MOQ： 1000
