FPH25401-S07S100101B
Download page

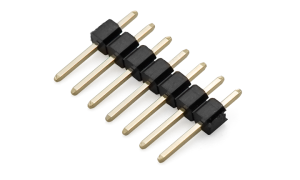

Pin Header 2.54mm 180°Vertical Single row 7Circuits(DIP)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.039293
10
$0.036633
50
$0.031313
100
$0.028653
500
$0.023333
1000
$0.013915
2500
$0.013725
5000
$0.013536
10000
$0.013347
25000
$0.013158
stock: 0 Estimated delivery date 2025-01-24
MPQ: 1000
MOQ: 2000
