Where you are： TXGA → Products → Pin Header/Female Header → FPH25448 → FPH25448-S04S1154191240B
FPH25448-S04S1154191240B
Download page
Pin Header 2.54mm, Single row, 4Circuits, 180° Vertical(DIP), 15μ", PA6T
Product System：
Pin Header/Female Header
Product Category：
Pin Header
Series：
Pin Header 2.54mm 180°Vertical Single row (DIP)
Status：
Inactive
authentication：
REACH RoHS ELV
Product Drawings
FPH25448 Series.pdf
Product Specifications
FPH25448Productspecification.pdf
Product Specification
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

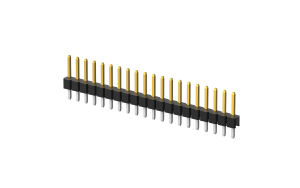

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.492229
10
$0.464235
50
$0.408249
100
$0.380256
500
$0.324269
1000
$0.252982
2500
$0.249505
5000
$0.246027
10000
$0.242550
25000
$0.239073
stock： 0 Estimated delivery date 2025-05-13
MPQ： 2000
MOQ： 6000
