FPH25453-D10S1004270719B
Download page
Pin Header 2.54mm, Double row, 10Circuits, 180° Vertical(DIP), Gold flash, PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

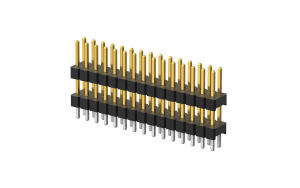

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.188313
10
$0.177142
50
$0.154799
100
$0.143627
500
$0.121284
1000
$0.090114
2500
$0.088880
5000
$0.087645
10000
$0.086411
25000
$0.085176
stock 10 In stock
MPQ: 20
MOQ: 20
