FPH25453-D16S1014073537B
Download page

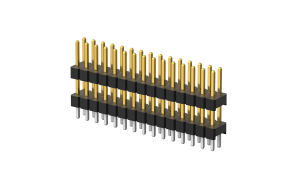

Pin Header, 2.54mm, Dual row, 16Circuits, Vertical(180°), Through hole, 0.025μm, PA6T
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.545285
10
$0.515025
50
$0.454504
100
$0.424244
500
$0.363724
1000
$0.290578
2500
$0.286570
5000
$0.282562
10000
$0.278554
25000
$0.274546
stock: 0 Estimated delivery date 2025-04-30
MPQ: 20
MOQ: 20
