FR-1YF-06
Download page

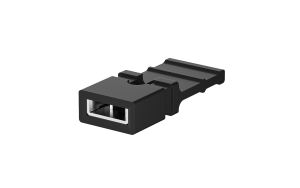

Mini jumper Pitch: 2.00mm Black
Product Number:
FR-1YF-06
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Mini Jumper
Style
Plug
Pitch
2mm
Number of Positions
1Circuit
Orientation
Vertical(180°)
Colour
Black
Structure Type
Opened
Electrical
Current(Max)
1.5A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, nickel on tail
Plating Thickness
Gold flash
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.056150
10+
$0.052349
50+
$0.044747
100+
$0.040946
500+
$0.033344
stock 255 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
